• Model NO.：YC-1625L
• Type：Cnc Bending Machine
• Transport Package：Wooden Cases.
• Specification：2500*1600mm
• Trademark：YUCHEN
• Origin：Shandong Jinan
• Production Capacity：25 Sets,Month

Model

YC-1625A

YC-1625L

YC-2030A

Working area

2500×1600mm

2500×1600mm

2000×3000mm

Operation properties

Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime

Safety device

Infrared adopted; sensitive response; safe and reliable

Maxi cutting speed

1200mm/s

Translational velocity

1500mm/s

Applicable materials

KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc

Multifunctional head

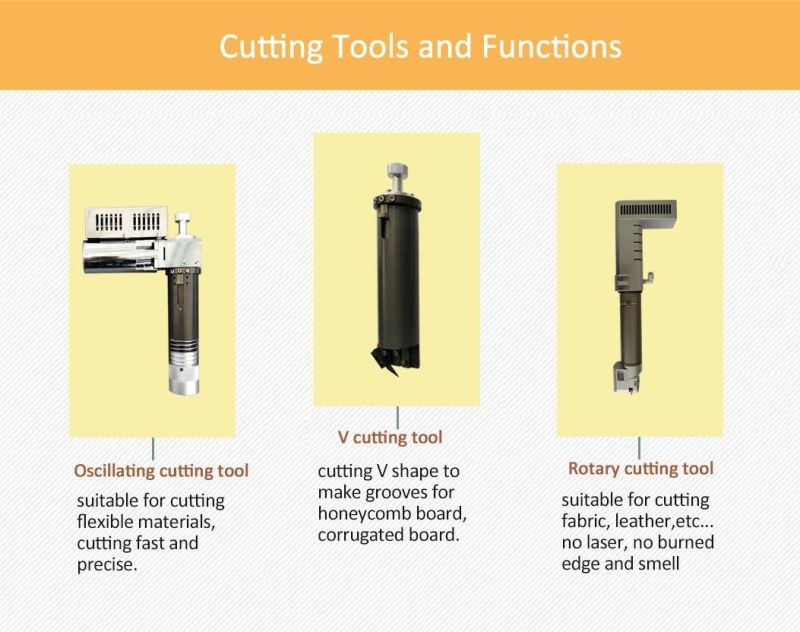

oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position

Cutting thickness

0.1-20mm(subject to material)

0.1-10.0mm(subject to the material cutting)

Cutting tolerance

±0.1mm

Transmission interface

Ethernet

Transmission system

Motor:Panasonic or Fuji

 Linear rail:Hiwin

Fixed mode

Vacuum absorb

Supply voltage

AC 220V 380V±10%,50HZ

Rated power

11KW
