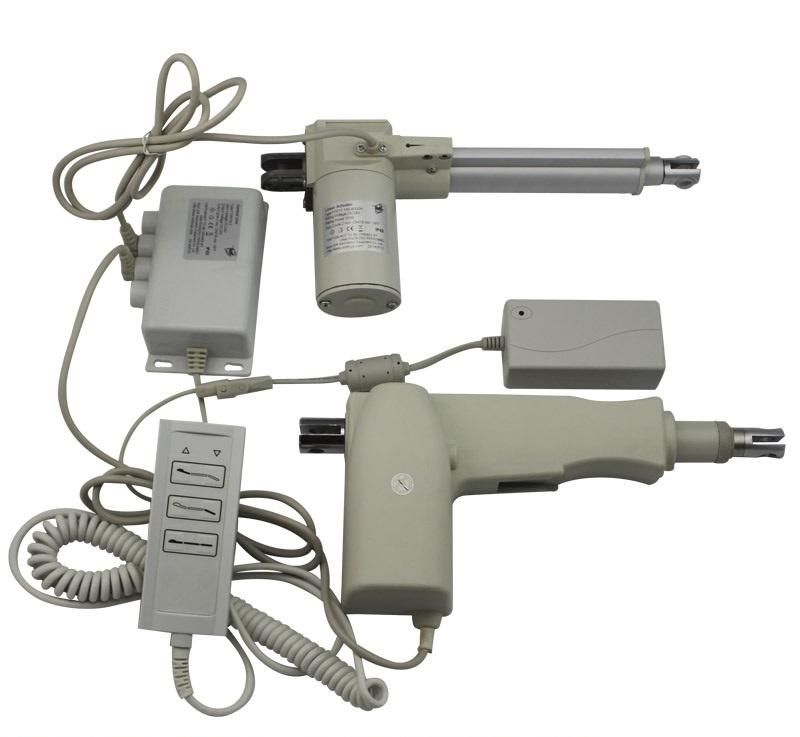

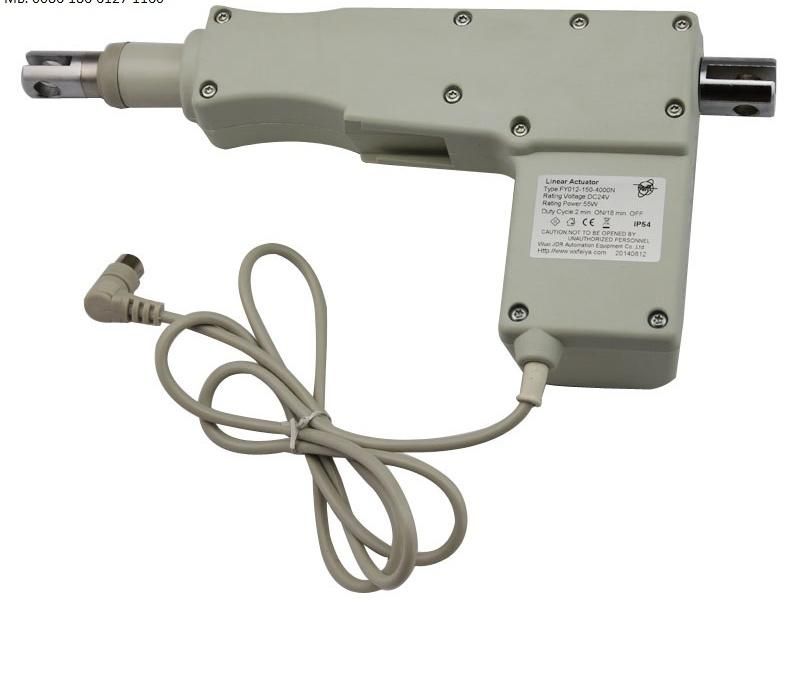

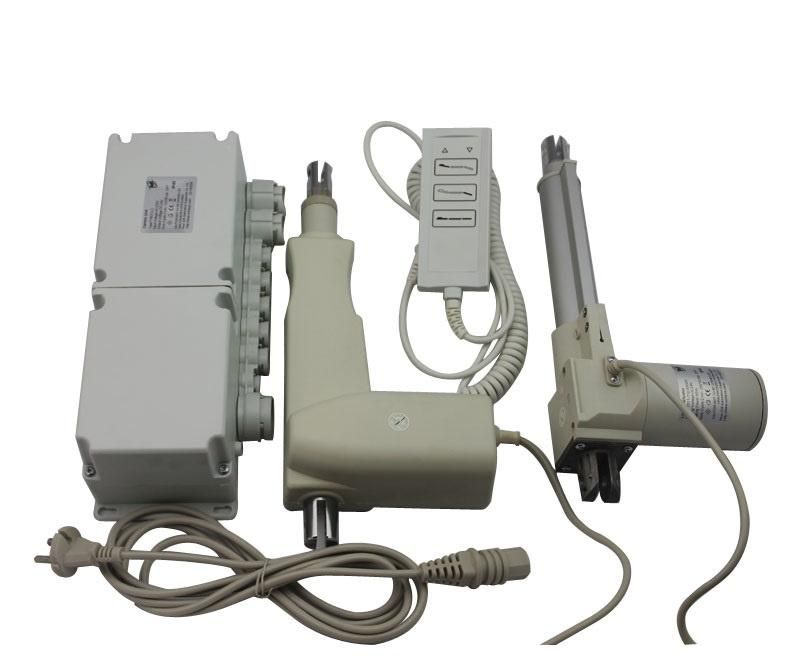

12V or 24V DC 200mm 6000n IP54 High Load DC Motor Actuator for Bed, Chair, Sofa

Wuxi JDR Automation Equipment Co., Ltd.
  • Material：Metal
  • Type：Electric Bed
  • Folded：Unfolded
  • Using Ambient：Hospital
  • Numbers of Function：Five-function
  • Certification：CE, CE,RoHS,SGS

Base Info

  • Model NO.：FY012
  • Load Capacity：6000 N
  • Input Voltage：24V
  • Stroke：50~1000mm Optional
  • Protection Class：IP54
  • Usage：Furniture Equipment,Sofa,Bed
  • Mini Install Dimension：S+175mm
  • Warranty：2 Years
  • Limit Switches：Inner
  • Type of Duty：S2-10min
  • Transport Package：in Standrd Box or as Required
  • Specification：4000N
  • Trademark：JDR
  • Origin：Jiangsu, China (Mainland)
  • HS Code：940190900
  • Production Capacity：1, 4000PCS,Month

Description

Basic Info.

Model NO. FY012 Load Capacity 6000 N Input Voltage 24V Stroke 50~1000mm Optional Protection Class IP54 Usage Furniture Equipment,Sofa,Bed Mini Install Dimension S+175mm Warranty 2 Years Limit Switches Inner Type of Duty S2-10min Transport Package in Standrd Box or as Required Specification 4000N Trademark JDR Origin Jiangsu, China (Mainland) HS Code 940190900 Production Capacity 1, 4000PCS/Month

Product Description

12V or 24V DC 200mm 6000n IP54 High Load DC Motor Actuator for Bed, Chair, Sofa12V or 24V DC 200mm 6000n IP54 High Load DC Motor Actuator for Bed, Chair, Sofa12V or 24V DC 200mm 6000n IP54 High Load DC Motor Actuator for Bed, Chair, Sofa12V or 24V DC 200mm 6000n IP54 High Load DC Motor Actuator for Bed, Chair, Sofa12V or 24V DC 200mm 6000n IP54 High Load DC Motor Actuator for Bed, Chair, Sofa

Input Voltage: 24 v DC

Load Capacity: 4000N

Max Speed: 4MM/S(4000N), 9mm/s(2000N)

Stroke: 0~1000mm(option)

Type of duty: S2-10min

Limit switches: Inner

Operation Temperature: -26--65 centigrade

Protection Class: IP54

Certification: CE/EMC+LVD, RoHS

Type: Furniture part

Material: Metal and plastic

Use: Traction bed

Place of origin: Jiangsu, China(mainland)

Function: Driving

Shape: Linear

Power: DC

More inforamtion

1) 24VDC permanent magnet motor

2) Thrust up to 8000N in push, and up to 5000 N in pull

3) Elegant and compact design with small instanllation dimensions

4) Built-in limit switches ( not adjustable after leaving factory )

5) Aluminium or zinc outer tube / inner tube

6) Electric chromate steel piston rod eye with slot

7) High-strength plastic housing protects motor and gears

8) Standard protection class: IP 54

9) Scratch and wear-resistant power painting

10) Noise level < 50 dB

11) Warranty: Two years

12) Duty cycle: 10%, or 2 munutes continous working followed by 18 minutes not in use
