Max Load 4000n Electric Sofa TV Set Use Linear Actuator
Wuxi JDR Automation Equipment Co., Ltd.- Application：Universal
- Operating Speed：Constant Speed
- Function：Driving
- Casing Protection：Closed Type
- Structure and Working Principle：Brush
- Certification：Ce, RoHS,SAA
Base Info
- Model NO.：FY014
- Brand：JDR
- Color：Black and Silver
- Transport Package：Standard Export Carton
- Specification：CE , RoHS
- Trademark：JDR
- Origin：China
- Production Capacity：5000 Sets , Month
Description
Basic Info.
Model NO. FY014 Brand JDR Color Black and Silver Transport Package Standard Export Carton Specification CE / RoHS Trademark JDR Origin China Production Capacity 5000 Sets / MonthProduct Description

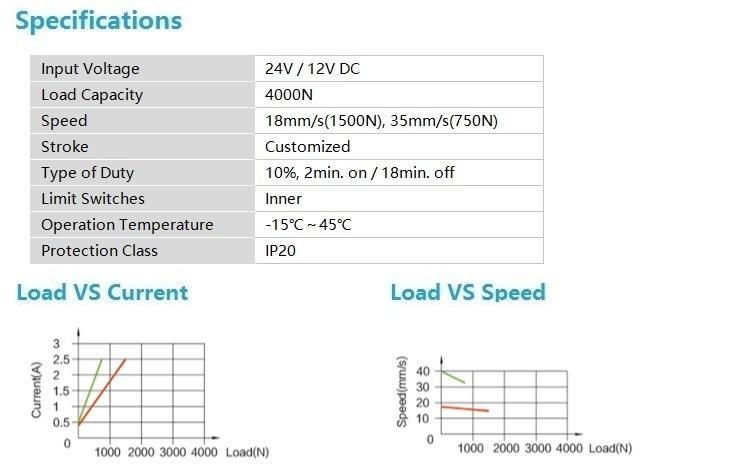

This is linear actuator used to recliner sofa, electric sofa, bed, etc.Technical Specifications of Linear Actuator:
Stroke: Customized
Min. Installation dimension: 156mm
Load capacity: 4000N
Free load speed: 18mm/s(1500N), 35mm/s(750N)
Input voltage: 24V DC/12V DC
Limit switch: Inner
Protection grade: IP20
Type of duty: S2-10min
Operation temperature: -15~45 centigrade
Features:
Material: Aluminum and plastic
Color: Black
Warranty: Two years

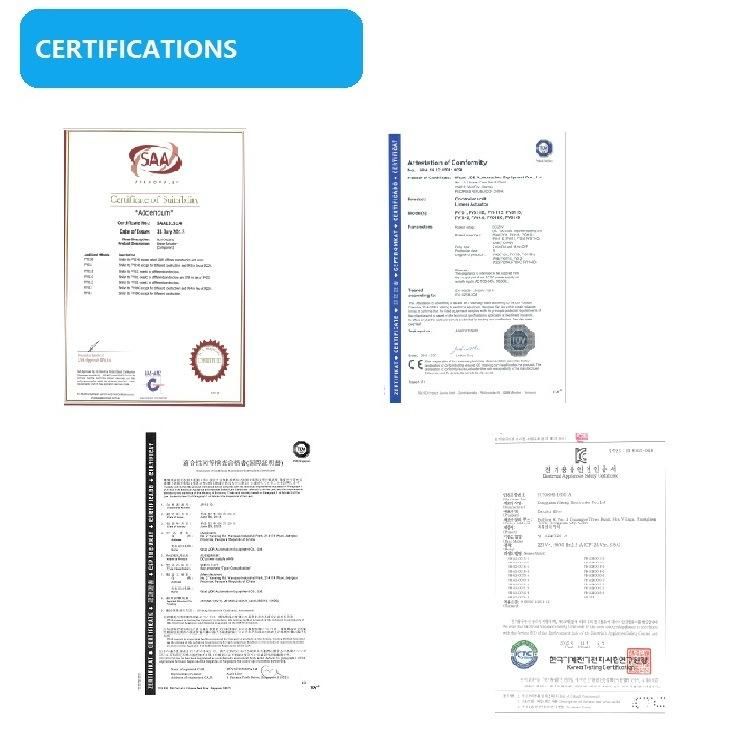

Certification: CE/EMC+LVD
| name: | linear actuator |
| model: | fy014, 4000N |
| input voltage: | 12V or 24V dc |
| load capacity: | 4000N |
| free load capacity: | 18mm/s(1500N), 35mm/s(750N) |
| stroke: | Customized |
| standard stroke: | 330mm |
| min. installatioin dimension: | 156mm |
| type of duty: | S2-10min |
| protection grade: | IP 20 |

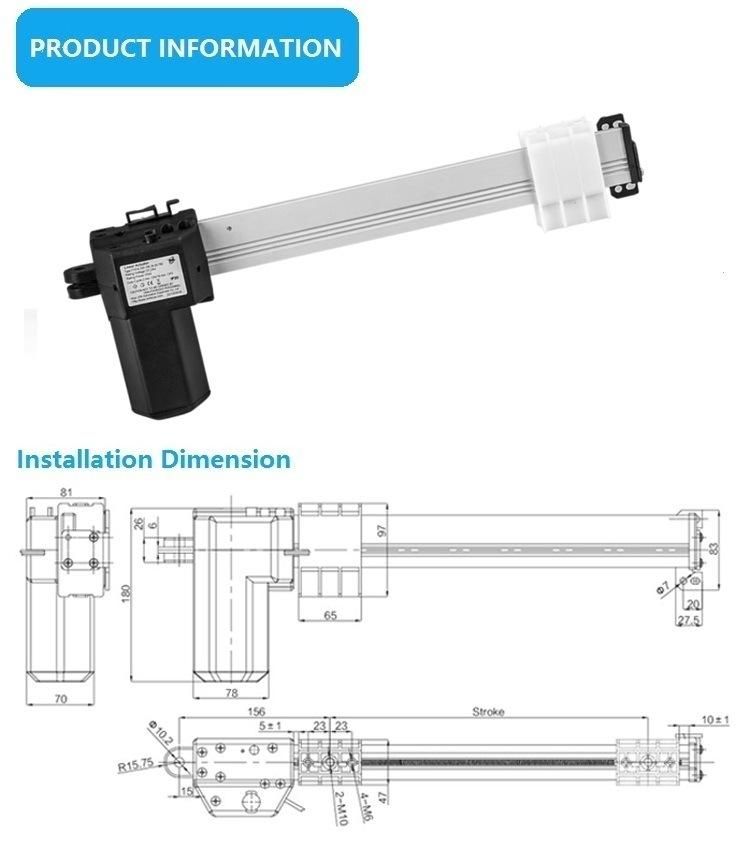

Picture of product
If you have any demand,please feel free to contact us.
