Sinotruk HOWO Right Hand Drive Dump Truck

Sinotruk Hubei Huawin Imp. & Exp. Co., Ltd.
  • Transmission Type:Manual
  • Power:Diesel
  • Load Capacity:21-30t
  • Emission Standard:Euro 2
  • Drive Wheel:6×4
  • Engine Capacity:>8L

Base Info

  • Model NO.:ZZ3257M3641
  • Seats:≤5
  • Horsepower:351-450hp
  • Tire Certification:ISO
  • Tire Design:Tubeless
  • Dumping Type:Front Lifting Style
  • Condition:New
  • Horse Power:420HP
  • Gearbox:10 Speed
  • Displacement:10L
  • Max Speed:75km,H
  • Color:White,as Customers′ Option
  • Logo:Can Be Designed as Customers′ Option
  • A/C:Yes
  • Air Seat:Yes
  • ABS:Optional
  • Axle:Fuwa
  • Transport Package:Nude
  • Specification:ISO,CCC
  • Trademark:HOWO
  • Origin:China
  • HS Code:8701
  • Production Capacity:500 Units,Month

Description

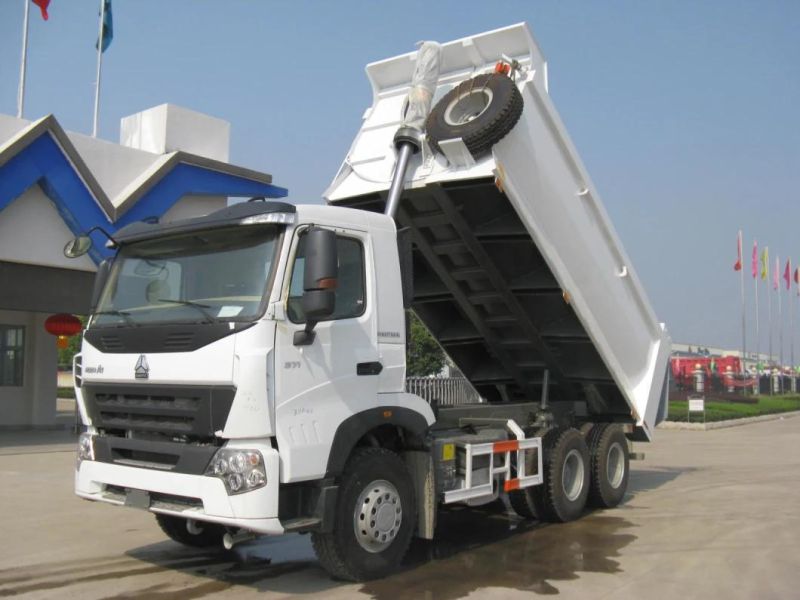

 Cabin Driving type 6x4      RHDThe photo only for refer, final configuration according specification of PI. A7-W cab, with two seats & one bed
  1. Vehicle Main DimensionsOverall dimensions (L x W x H)mm7665*2500*3500Wheel base  (mm)3225+1350Wheel track  (front/rear) (mm)1500/1670Approach/Departure angle(°)20/29Weight in KGSTare Weight11900payload29000Front axles loading capacity1x9000Rear axles loading capacity2x16000Max. driving speedEngine BrandSINOTRUKModelD12.42Type4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-coolingHorse PowerHW19710, 10 Forwards gear & 2 reverse gearClutchReinforced diaphragm clutch, diameter 430mmSteering GearZF ,power steering, hydraulic steering with power assistanceFuel tank (L)300LTire 12.00R24 tire, 11 pieces including one spare tireBrakes Service brake: dual circuit compressed air brake
    Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels
    Auxiliary brake: engine exhaust brakeBin size4500*2300*1500 mm, side is 6 mm, bottom 8 mmHydraulic systemChina Brand HydraulicTipperFront Tipper
    Sinotruk HOWO Right Hand Drive Dump Truck
    Sinotruk HOWO Right Hand Drive Dump Truck
    Sinotruk HOWO Right Hand Drive Dump Truck

    Our Advantage
    1.Competitive Factory Price and Excellent Quality
    2.More than 20 years' experience as a manufacturer
    3.Products Quality Certification SGS CCC ISO
    4.Perfect after-sale service
    5.Customized products available with us
    6.Export to more than 50 countries and regions
    7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
    8.Oversea office with more than 15 professional engineers to help local customers

    Main products
    1. Dump Truck / Tipper Truck
    2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
    3. Truck with crane / Truck mounted crane
    4. Oil Tank Truck / Fuel Tanker Truck
    5. Water truck / Water Tank Truck / Water Sprinkler Truck
    6. Concrete Mixer Truck
    7. Van truck / Insulated truck/ Refrigeration truck
    8. Fecal suction truck / Sewage suction truck
    9. Cement Powder Tank truck/ Bulk cement truck
    10. High-altitude operation truck
    11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
    12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

    FAQ
    1. MOQ: 1 unit
    2. Optional payment terms: T/T or L/C
        T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
        L/C: 30% payment advance, 70% L/C at sight.
    3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
    4. Delivery time: Within15 workdays after receiving 30% deposit of T/T

    Warranty
    1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes first.
    2. Other spare part could be supplied by OEM at cost prices.
    3. Regularly callback to know the vehicle's working status.
    4. The overseas engineers are always ready to deal with unexpected needs.


    Our Advantage
    1.Competitive Factory Price and Excellent Quality
    2.More than 20 years' experience as a manufacturer
    3.Products Quality Certification SGS CCC ISO
    4.Perfect after-sale service
    5.Customized products available with us
    6.Export to more than 50 countries and regions
    7.Oversea wareshouse with more than 100000 US dollors spare parts in stock
    8.Oversea office with more than 15 professional engineers to help local customers

    Main products
    1. Dump Truck / Tipper Truck
    2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
    3. Truck with crane / Truck mounted crane
    4. Oil Tank Truck / Fuel Tanker Truck
    5. Water truck / Water Tank Truck / Water Sprinkler Truck
    6. Concrete Mixer Truck
    7. Van truck / Insulated truck/ Refrigeration truck
    8. Fecal suction truck / Sewage suction truck
    9. Cement Powder Tank truck/ Bulk cement truck
    10. High-altitude operation truck
    11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
    12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

    FAQ

    1. MOQ: 1 unit
    2. Optional payment terms: T/T or L/C
        T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
        L/C: 30% payment advance, 70% L/C at sight.
    3. Parts of famous brand can be adopted by your requirement, such as WABCO, JOST, BPW, FUWA.
    4. Delivery time: Within15 workdays after receiving 30% deposit of T/T

    Warranty
    1. Six months quality guarantee for three key parts axles, engine, transmission or within 50000km, which comes first.
    2. Other spare part could be supplied by OEM at cost prices.
    3. Regularly callback to know the vehicle's working status.
    4. The overseas engineers are always ready to deal with unexpected needs.

    About us
    SINOTRUK is the leader in Chinese truck industry, founded in 1956, successively cooperated with Many Europe top manufacturers like Styre,Volvo and MAN. In 2007,we listed in the red-chip Hong Kong ,Germany MAN is our sencond largest share holder. Through centuries development, we have owned 20 subsidiaries in China, our products exported all around the world.
