• Customized：Customized
• Condition：New
• Color：Iron Grey
• Cutting Speed：1500mm , S
• Cutting Thickness：0.1mm~100mm
• Cutting Precision：+,- 0.1mm
• Location Mode：Infrared Laser
• Transport Package：The Wooden Case
• Trademark：kangjia
• Origin：China Jinan
• Production Capacity：100 , Month

Basic Info.

Customized Customized Condition New Color Iron Grey Cutting Speed 1500mm / S Cutting Thickness 0.1mm~100mm Cutting Precision +/- 0.1mm Location Mode Infrared Laser Transport Package The Wooden Case Trademark kangjia Origin China Jinan Production Capacity 100 / Month

Product Description

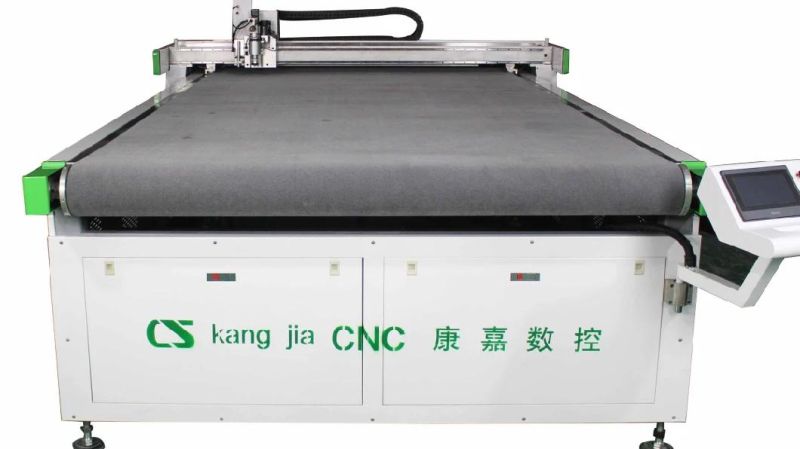

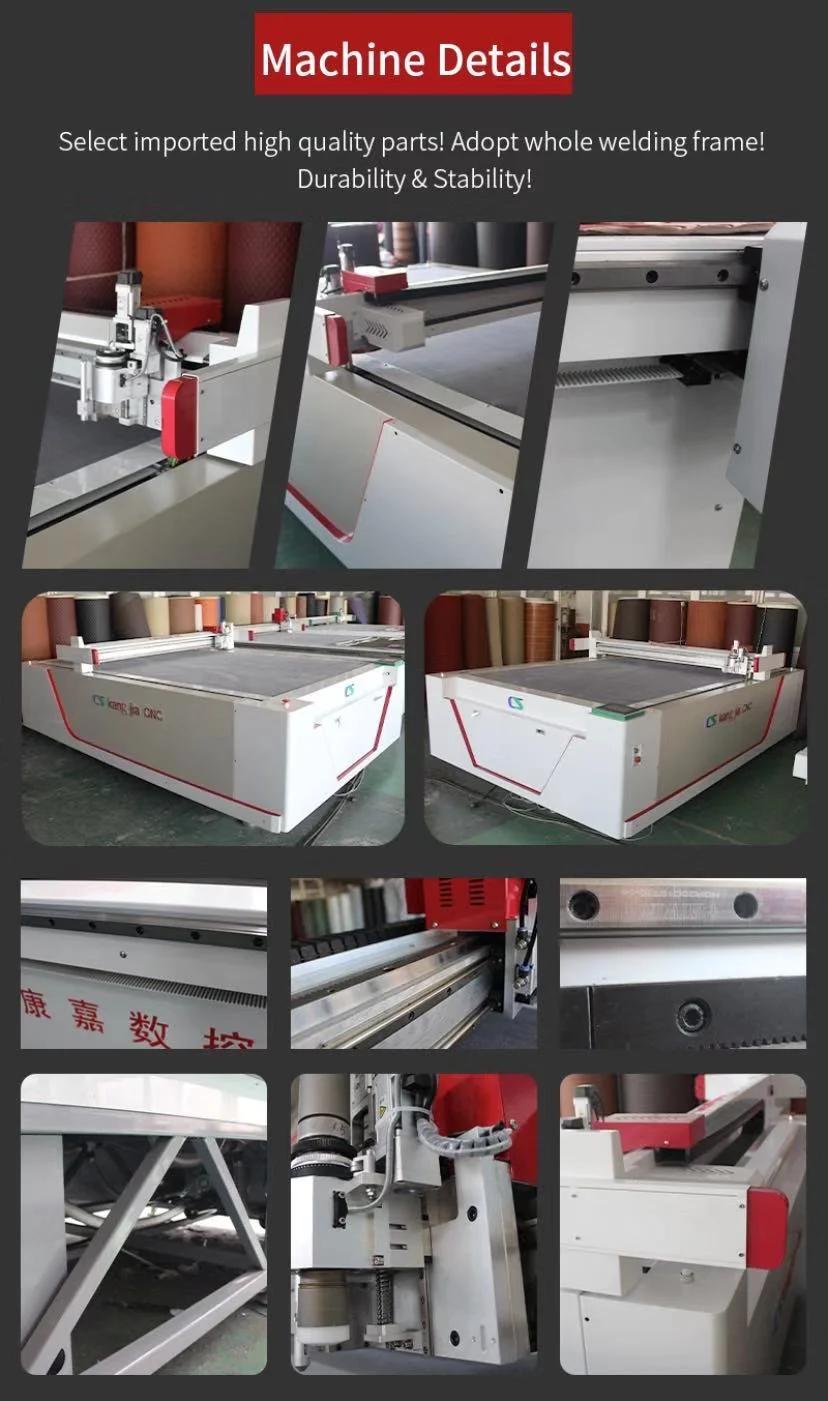

Auto Blanking CNC Leather Cutting Machine for Sofa Apperal Handbag Shoemaking


Kangjia cnc cutting machine applies vibrating knife on the cutting head. It's possible to cut a wide range of car mats materials like Loop Material, PU-based Sponge, PU, Composite Material, PVC; Rubber; Jean etc.Due to the good performance and stable quality, Kangjia sample cutters have been widely used for automotive interior (universal car mats, special car mats, car seats, handle parts ...) sample making or small bulk production.
Hot Sale Rubber Car Mat Making Cutting Machine with Ce ISO


Parameter
Item Number    kj-1625
Cutting speed    0-1200mm/s
Effective working area    2500mm*1600mm
Air pump power    9KW
Cutting thickness    0-25mm(Common); 0-50mm(High)
Cutting Materials    Corrugated paper, Honeycomb board, Cardboard, Plastic, Rubber board, Grey board, PVC, PU, Acrylic, composite materials, etc.
Tools    Oscillating knife
V-cut, router, creasing wheel, punching tool,
Marking pen
Material fixing method    Divisional vacuum absorption
Mechanical resolution    0.07mm
Software resolution    0.025mm, 0.01mm, 0.1mm (optional)
Interface of transmission    Network port
Buffer capability    Once fast transfer
Command system    HP-GL and GP-GL compatible formats
Digital Control Panel    Touch screen
Transmission Materials    Imported straight line guide track, gear rack
Motor    Servo motor
Cutting Blade Rotate    18000r/min
Working Voltage    AC 220V ± 10%, 50HZ (Machine); AC 380V ± 10%, 50 HZ (Air Pump)

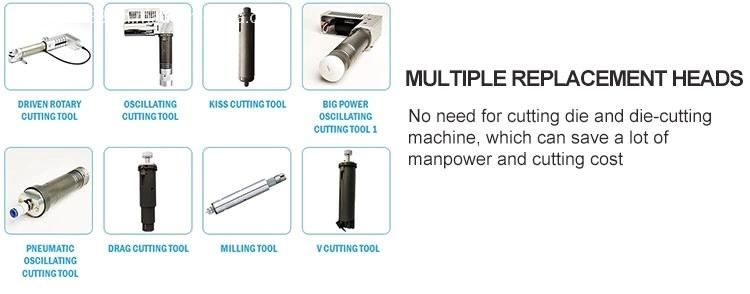

Tools & Functions
This package cutting machine has a multifunctional working head. The working head can be installed with different working tools. With different working tools this package cutting machine is professional and suitable fo users with various kinds of purpose.
Oscillating cutting tool: it is the main cutting tool with a vibrating knife. The characteristics are fast, accurate and no burning nor smell.

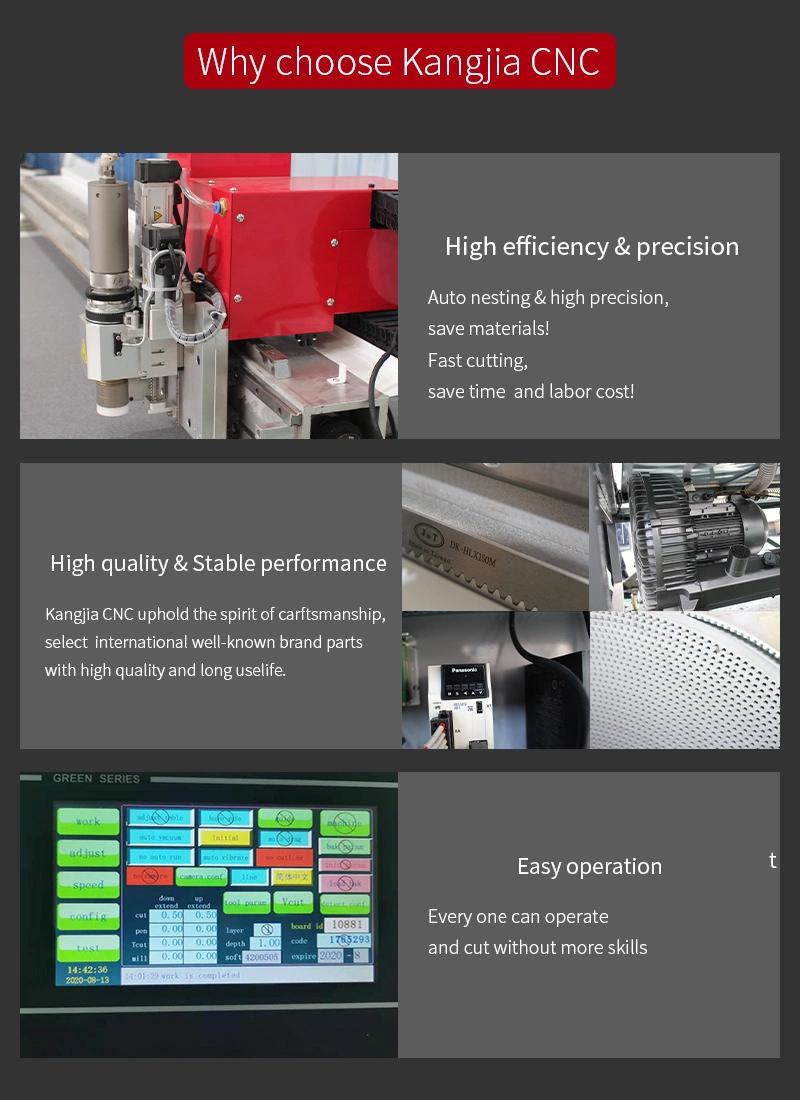

Advantage of Our CNC Cutting Machine

Hot Sale Rubber Car Mat Making Cutting Machine with Ce ISO
1. Time Saving: The machine cuts by vibration knife. It's possible to finish cutting 3 pieces of 4D or 5D car mats within 3 minutes, much faster than cutting by hand. It guarantees fast output of customized car mats.

2. Material Saving: Pattern nesting can be done and checked carefully before cutting, avoiding hiden lost during careless cutting by workers. It can save at least 5% materials than manual cutting.

3. Storage Room Saving: Cut whatever you want, whenever you need. No need to have a large storage room for a large quantity of ready car mats.

4. Flexibility: Each customer can pick up the materials, patterns they like to make the special car mats for their special cars, expending a large automotive beauty industry at your end!

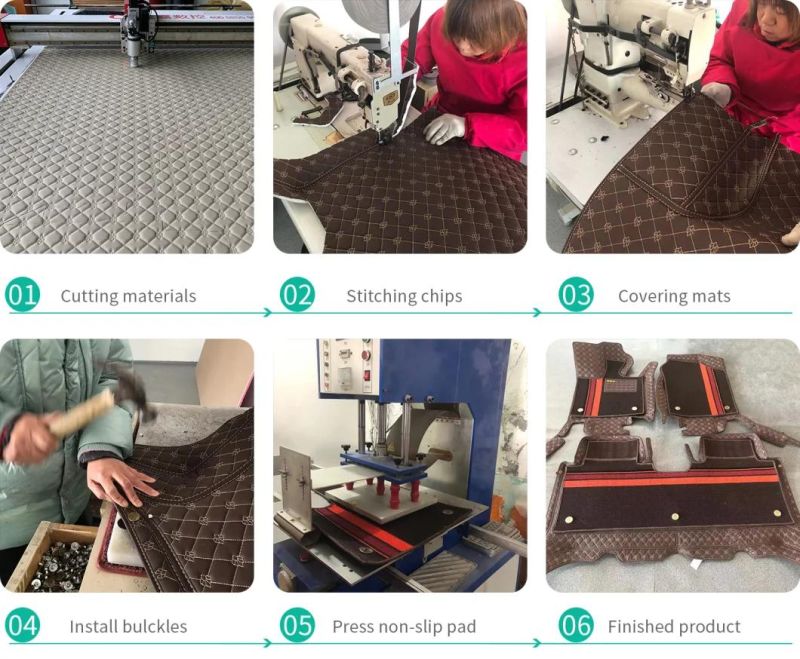

General Production Procedures for Special Car Mats:

1- Get ready for the car mats models
     You can make the car mats by scanning paper patterns using A0 digitizer to make digital pattern files.
     Or you cna use 3D scanner to scan the car and directly get the car mats digital files.

2- Car mats pattern nesting
     You can do the pre-nesting by using automatic nesting software or do it manually.

3- Material preparation
    Choose the material and patterns you like from your materials.

4- Car mats cutting
     Send the digital car mats file to the machine and start cut on your material. You can pick up the parts after a few minutes.

5- Car mats rapping and stitching
    Collect all the cut parts to the stitching room, make the rapping of the edge by using the rapping machine. Join the parts by using stitching machines.


Package of Our CNC Cutting Machine
The package is one part of the factory production line. The standard overseas wooden package has also to be quality controlled in order to guarantee the products be perfect when they arrive at your hands.
Hot Sale Rubber Car Mat Making Cutting Machine with Ce ISO

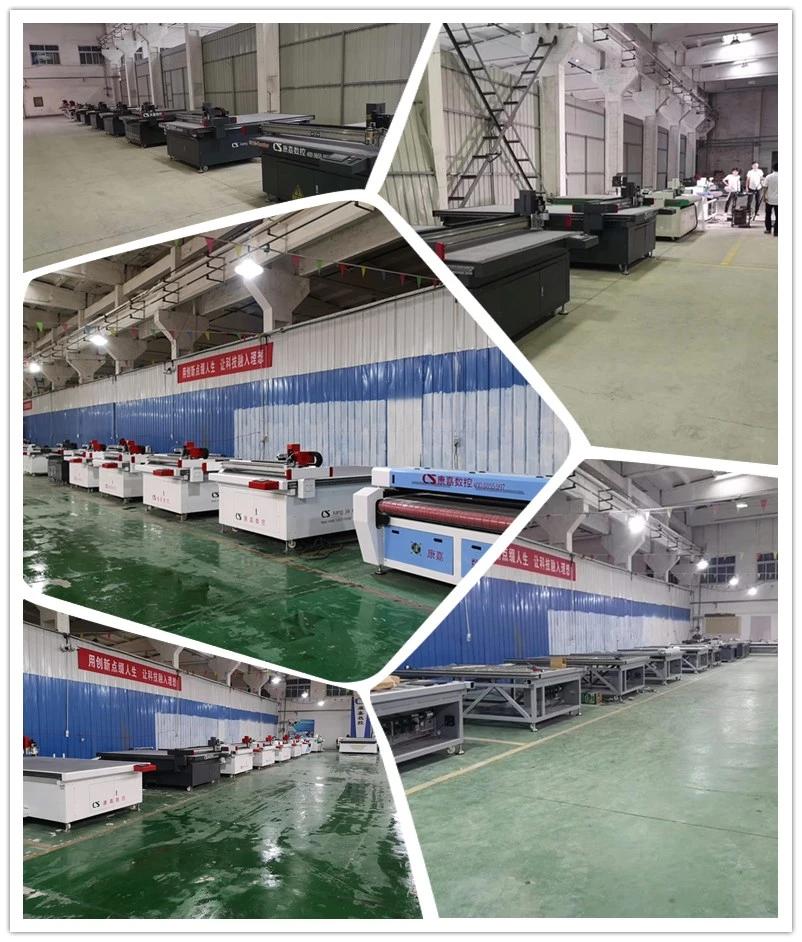

Company Show
JNAN KANGJIA INTELLIGENT TECHNOLOGY CO., LTD is a comprehensive service company specializing in the production, processing and sales of numerical control equipment. It involves many fields and industries. Its r & d level and production capacity in the industry has been far ahead of the position. Products are exported to foreign countries and new and old customers praise.
Company insists on quality first, service is given priority to, focused on two aspects of product development and after-sales service, real let customers buy the rest assured, with satisfactory, and to enhance the soft power service link, version type data precision, actively resolve customer problems discovered in the actual production process at home and abroad has been successfully guide than a few hundred, both at home and abroad have gained recognition and praise among the clients and the industry.
Through the accumulation of time and experience, our products and equipment have been constantly updated, and we have produced generation after generation of equipment that is more in line with customers' needs, with better quality, stronger practicality and higher cost performance
In order to better serve the automotive supplies industry, the company invests more energy and material resources. Create flexible cutting equipment, automotive supplies production sewing equipment, technical training, version data, operation guidance, raw materials, accessories, and other integrated solutions.
